Machinery Description
XPS machines
XPS 250kg/hr line (PITAC TAIWAN)
Xps 250kg/hr machine was installed in 2004, the machine operates with R152/DME gas. Machine can produce Xps sheets in range of 35-48kg/m3. Recycle machine for 250 kg line

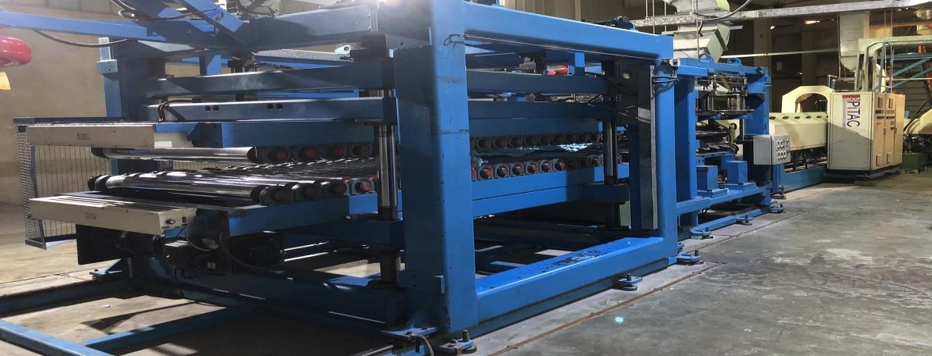

XPS 450kg/hr. line(PITAC TAIWAN)
In 2007 we installed Xps 450kg/hr in our facility. We can the machine operate with R152/DME gas. Machine can produce XPS sheets in range of 32-48kg/m3. Machines consist of a dedicated recycling machine and all other supporting equipment. Presently the machine is working on Dc motors, but EEI has already purchased AC motors which can be installed at any time in future which reduces the electricity consumption. This machine is ideal for low density sheet production for 5cm,7.5cm and 10cm.
XPS machine specifications
Manufacturer |
PITAC,Taiwan |
PITAC,Taiwan |
Capacity |
250 kg/hr |
450 kg/hr |
Year of assembly |
2004 |
2007 |
Raw material | Polystyrene | Polystyrene |
Blowing agent |
Butane or HFC |
Butane or HFC |
Capacity | 250 kg/hr | 450 kg/hr |
Products Thickness (max.) |
60 mm |
100mm |
Products Thickness (min) | 25mm | 25mm |
Products Width (max.) | 600mm | 600mm |
Volume of finished goods/hr | 3.75 m3/hr | 7.5 m3/hr |
Density Range | 35-48 kg/m3 | 32-48Kg/m3 |
